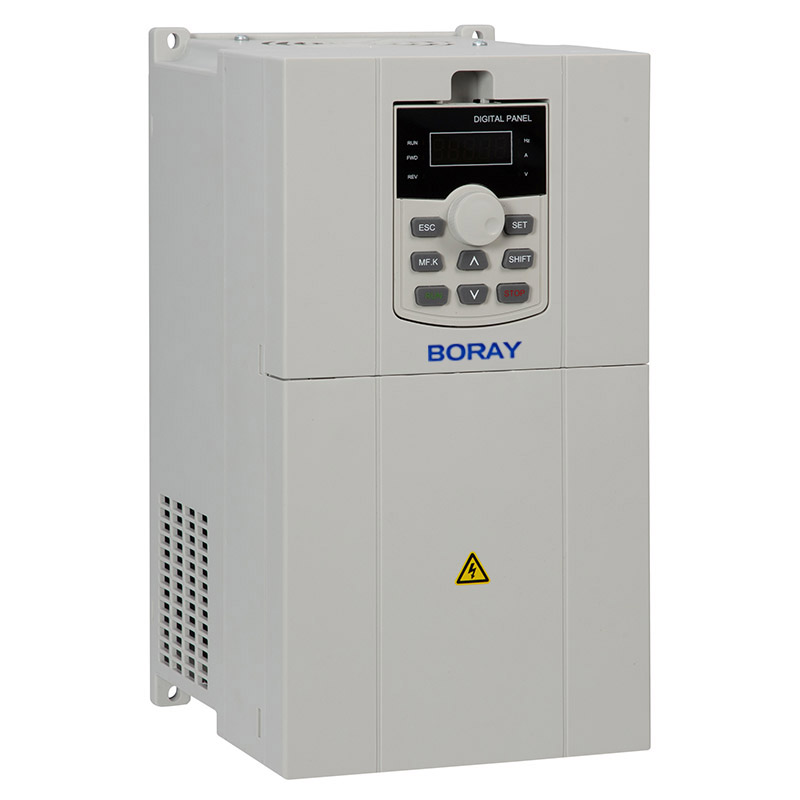

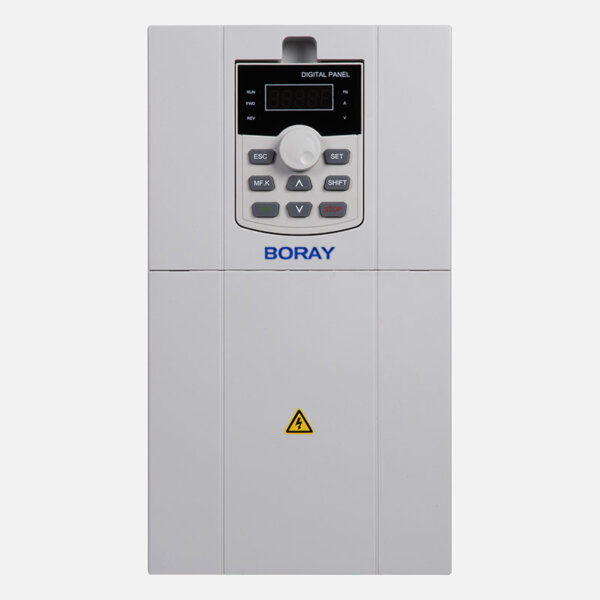

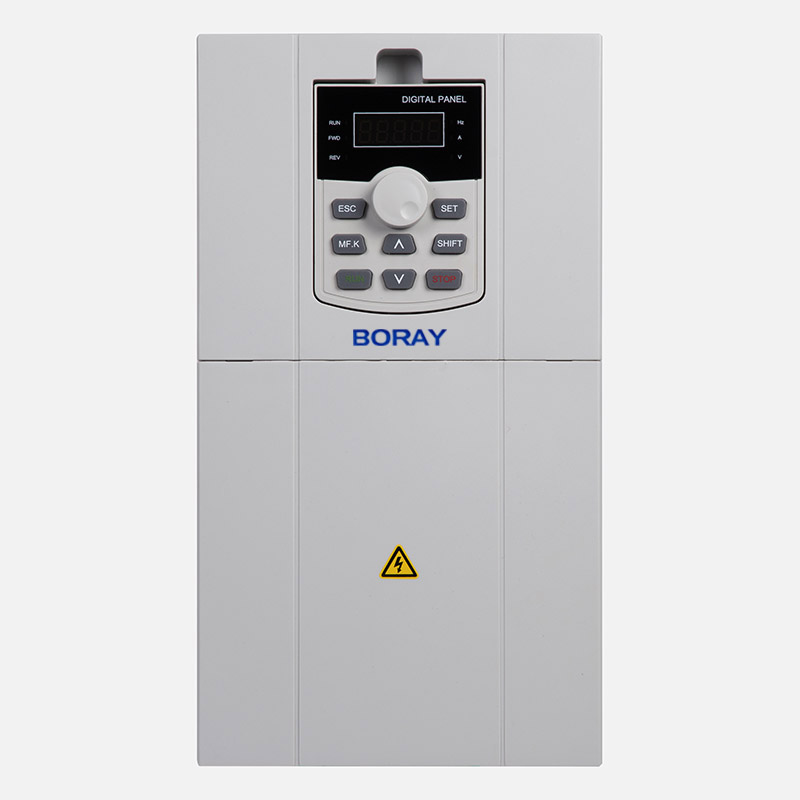

BR500-P Solar Pump Inverter

描述

Comprehensive Product Introduction: BR500-P Series MPPT Solar Pump Inverter

The BR500-P Series MPPT Solar Pump Inverter redefines sustainable water management by seamlessly converting solar energy into reliable AC power for industrial, agricultural, and residential pumping systems. Engineered for extreme environments and unmatched efficiency, this series leverages cutting-edge MPPT technology and military-grade durability to deliver zero-carbon water solutions where grid power is scarce or unstable.

Revolutionary Solar Performance

1. Ultra-High Efficiency MPPT (99.8%):

   • Proprietary algorithms track maximum solar power points in real-time, ensuring >99.6% energy harvest efficiency even under partial shading or fluctuating irradiance.

   • Wide DC input ranges (80–900VDC) accommodate diverse PV configurations (15–25+ panel strings) without external controllers.

2. Hybrid Power Resilience:

   • Dual AC/DC input enables automatic switching between solar/grid power. During grid availability, it operates as a high-performance VFD with automatic voltage regulation (AVR) and surge suppression.

   • Voltage tolerance: ±20% (grid), ±5% frequency deviation.

3. Smart Pump Protection & Control:

   • Dry-run protection halts operation when water levels drop, preventing pump burnout.

   • Flow calculation via PG curves optimizes water output without physical sensors.

   • Phase-loss, overcurrent (200% fault suppression), and motor temperature safeguards.

Engineered for Extreme Environments

• Robust Defense Against Elements:

  • IP55-rated sealed enclosure with independent air ducts blocks dust, humidity, and corrosive gases.

  • Enhanced three-proof (anti-corrosion, anti-mold, anti-salt spray) coating withstands deserts, coastal areas, and chemical fumes.

• Component Reliability:

  • Infineon/Fuji IGBT modules ensure 100,000+ hour lifespan under full load.

  • Industrial-grade lightning protection (8/20μs, 40KA).

Intelligent Operation & Connectivity

• Multi-Mode Flexibility:

  • MPPT/CVT/Variable Frequency modes adapt to weather conditions—maximizing yield in sun, stabilizing pressure in clouds.

• Remote Management:

  • RS485 Modbus enables cloud monitoring, parameter adjustments, and fault diagnostics via PLC/SCADA systems.

  • Supports analog/digital sensors for automated water-level control (e.g., tank filling, irrigation cutoff).

Technical Specifications & Models

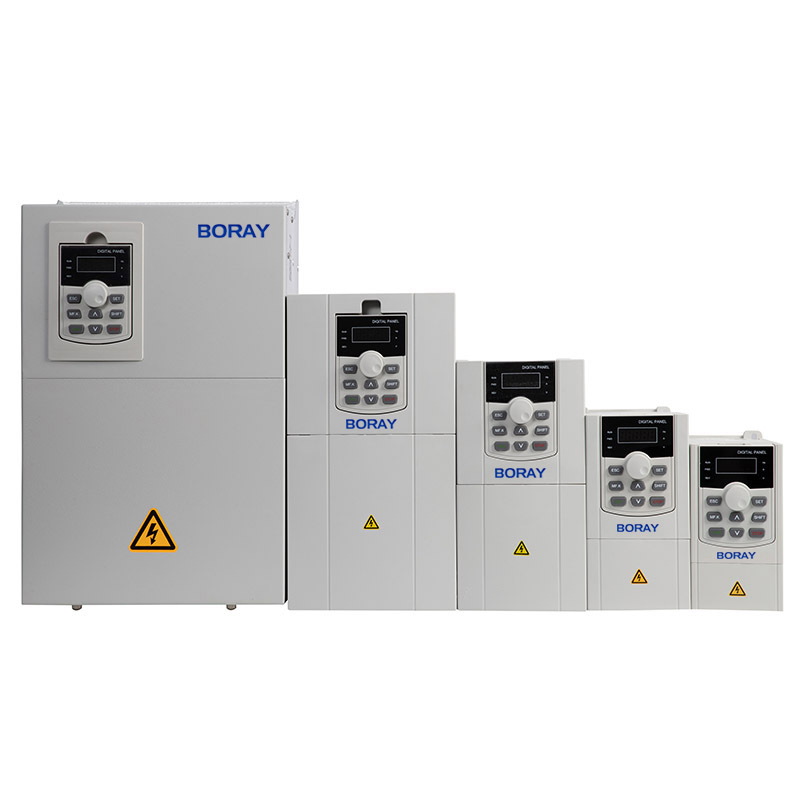

Select Models (380V AC Pump Series):

Global Applications

• Agriculture: Solar irrigation (center pivots, drip systems), livestock watering.

• Water Infrastructure: Municipal wells, wastewater transfer, desalination plants.

• Emergency Relief: Off-grid disaster-response water supply.

• Industrial: Cooling towers, chemical dosing, mining dewatering.

Why BR500-P Outperforms Conventional Solutions?

1. Fuel-Free Operation:

   • Replaces diesel generators, slashing OPEX by 70% and eliminating emissions.

2. Zero Water Waste:

   • Flow calculation and dry-run protection reduce resource loss by 45%.

3. Installation Simplicity:

   • Pre-configured voltage profiles (110V/220V/380V pumps) with plug-and-play wiring.

4. Future-Proof Scalability:

   • Modular design supports system expansion from 0.75KW to 500KW without hardware swaps.

Conclusion: The BR500-P Series isn’t just an inverter—it’s a sustainable water revolution. By merging unmatched solar efficiency with brutal environmental resilience, it empowers farms, communities, and industries to harness free solar energy for critical water needs. Backed by BR’s global service network (USA, Africa, Middle East), it delivers 20-year reliability where water scarcity demands perfection.
